- Condition:New
- Place of Origin:CN;HEB

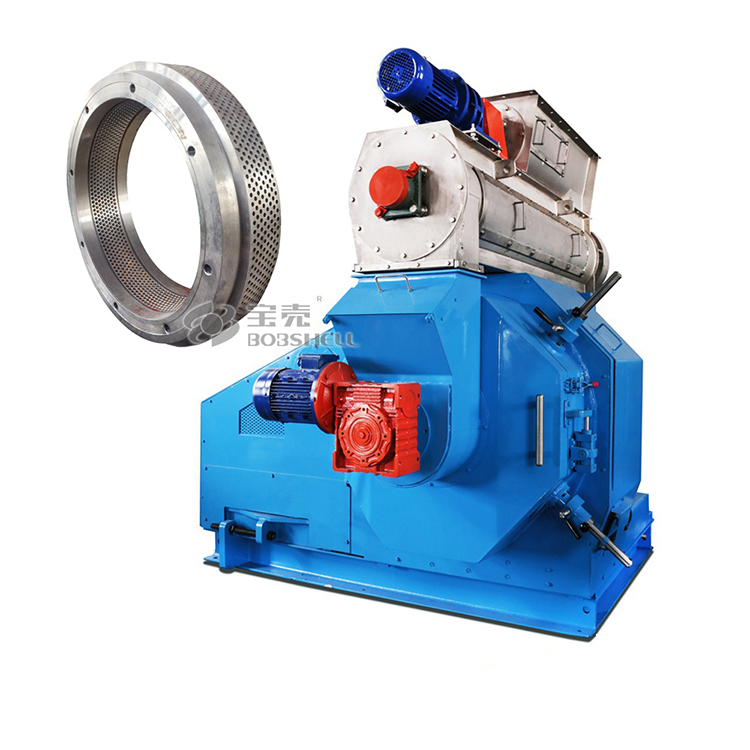

- Type:Feed Pellet Machine
- Warranty:1 Year
- After-sales Service Provided:Online support
- Brand Name:BOB SHELL
- Voltage:380V
- Dimension(L*W*H):3348*2390*2485
- Weight:6960 kg
- Certification:ISO9001

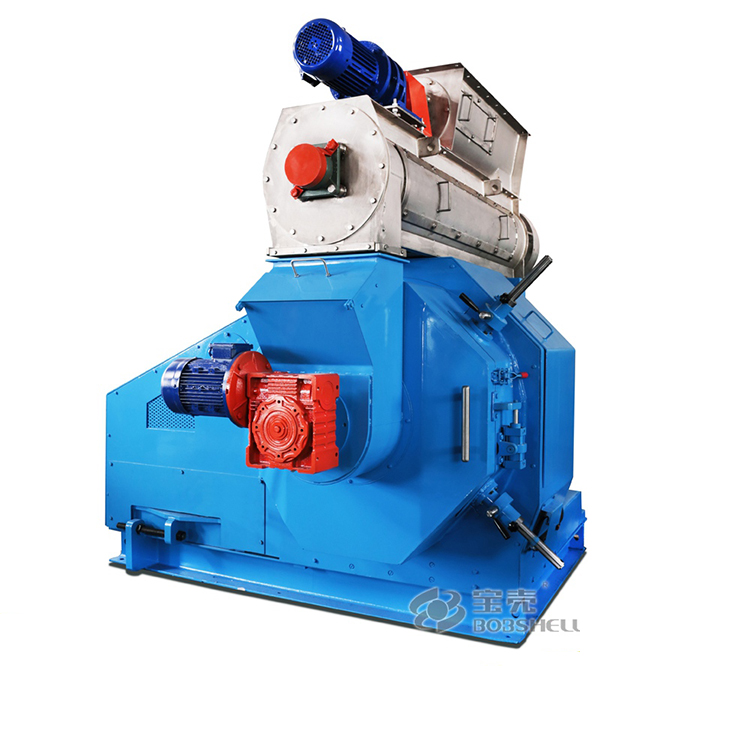

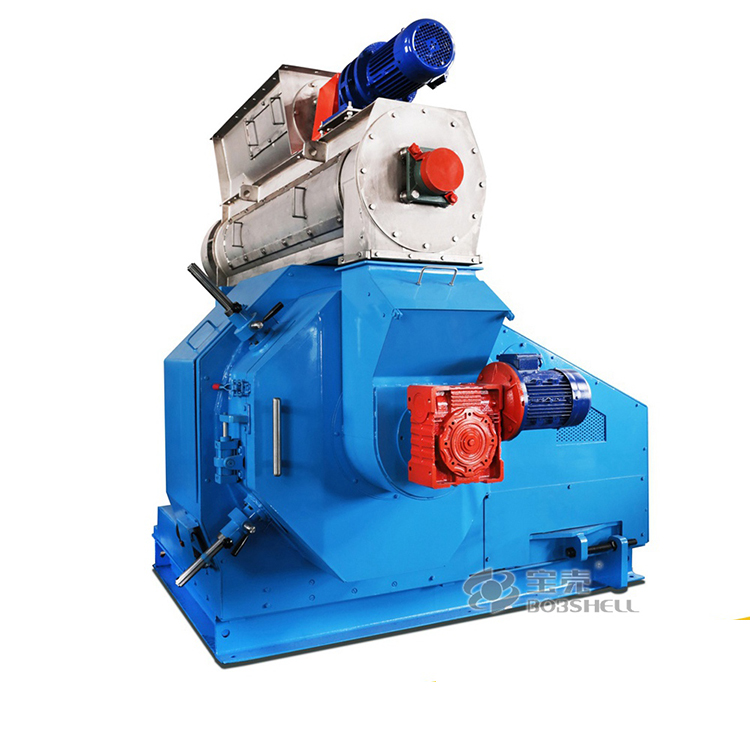

Ring die Pellet machine Parameter | |||
Screw feeder | Conditioner | ||
Diameter | 245mm | Diameter | 400mm |
Motor power | 2.2KW(3MP) | Length | 1830mm |
Flow rate | 5.27Cubic dm/R | Volume | 360 Cubic dm |
Speed | 0-158Rpm | Motor power | 5.5KW |
Main Motor | Ring Die | ||
Main motor power | 160KW(220Mp) | Inner diameter | 520mm |
Pulley diameter | 1100mm | Working width | 82mm |
Ring die rotate speed | 6M/S | Total width | 182mm |
Belt type | 5V-1700/1900 | Working area | 13.93 Cubic dm |
Roller Shell | Weight | ||
Number of Rollers | 2 pcs | Main machine weight | 5972Kgs |
Outer diameter of Rollers | 250mm | Screw feeder +Conditioner | 990Kgs |
Total weight | 6960 Kgs | ||
| Keyword | wood pellet machine |
| Usage | Making Wood Pellets Animal Feed Pellets |
| Working type | 24 hours |
| Optional Spare Parts | Die,roller shell or another |
| pellet diameters | 6-12mm |
| Main Machine Span Life | Over than 10 years |
| Function | Producing Animal Feeds Pellets |
| Transport | Sea freight or customized |
| Spare Parts Service | Periodical supply |

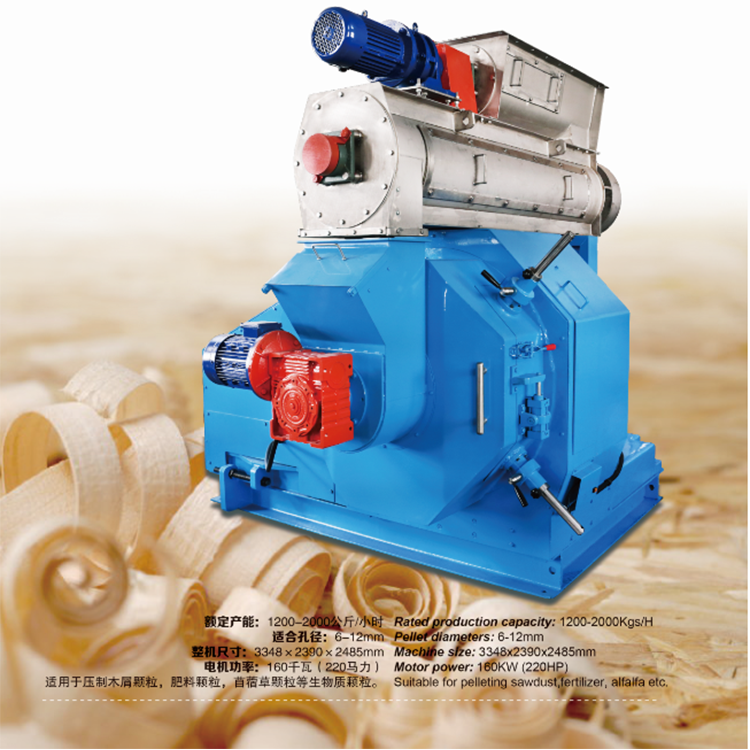

| rated production capacity | 1200-2000Kgs/H |
Product detail
Wooden pellet machine has a high efficiency, stable and lower-maintenance and the life span of machine is over than 10 years.
You chose us to choose the quality assurance and reasonable price.

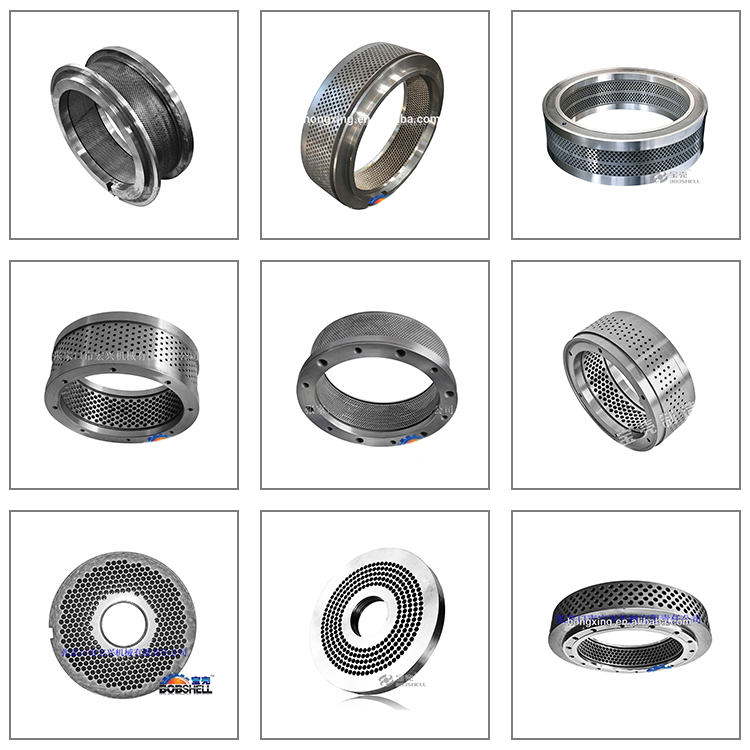

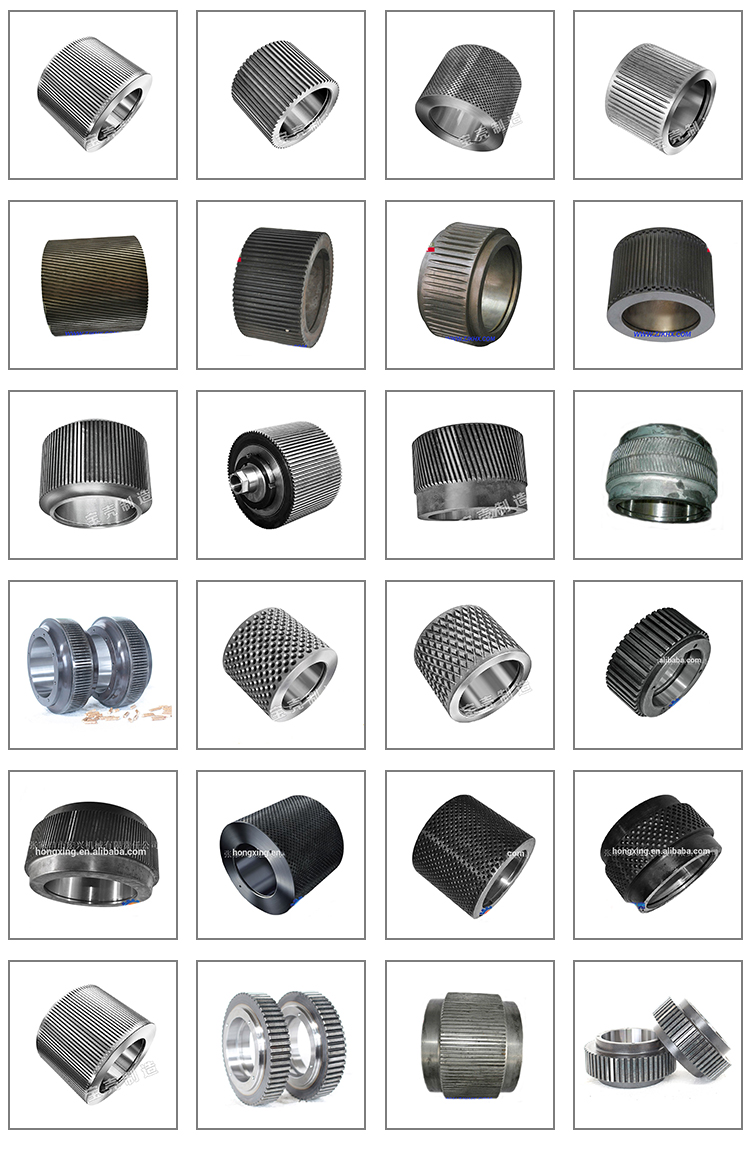

Zhangjiakou Hongxing Machinery Co.,Ltd is a Chinese leading manufacturer of pellet machines of animal feeds, bio-energy and spare parts. With over 20years production and exporting history of ring dies, roller shells, and flat dies, the company's BOBSHELL brand serial products have accumulated served over 1200 clients around the world and be long-lasting reliable supplier of CPM, BUHLER,ANDRITZ, LA MECCANICA which are world famous firms in Pellet industry.
Hongxing Machinery has been got CQC ISO9001 certificate since 2006. After 15 years growth together with Alibaba.com, Hongxing is also awarded reputation of Alibaba Golden supplier, Whole life board of director member of WECBA, China Customs Grade A exporting firm and of key integration enterprise of informatization and industrialization both in Zhangjiakou city and Hebei province. The only Listed company of SHANGHAI EQUITY EXCHANGE CENTER in pellet industry.
Hongxing Machinery insists on the mission of"World class quality, serve Chinese clients to expand the markets."Bobshell"parts have gained huge competition advantages in the fields of animal feeds, biomass fuels, chemicals, organic fertilizers etc. Under the guidance of Company's goal,"Bobshell"series pellet parts will keep offering great quality and relieved services to all clients, devoting contributions to Chinese agriculture and animal husbandry and biomass fuel industries together with partners of same aim.
